ProII SERIES Garage Aluminum Base Cabinets

WATCH THE VIDEO TO LEARN MORE
  • High-Alloy Aluminum
  • 4″ High Top Drawer
  • Toe Kick Riser™
  • Anodized Frame
  • Trigger Latch
  • Adjustable Shelves
  • Pull-Out Shelves
  • Modular Design
  • Lifetime Warranty
STANDARD COLORS
Yellow

Yellow

White

White

Signature Black

Signature Black

Red

Red

Moduline Blue

Moduline Blue

Royal Blue

Royal Blue

Light Gray

Light Gray

Actual Colors May Vary From Website.

  • QuickDraw® Text LogoPatented Single Action Latch System on optional 4” drawers.
  • Toe Kick Riser™ optional feature supports entire cabinet and allows for easy leveling on uneven floors.
  • Modular and easy to install. Moduline aluminum garage base storage cabinets are completely assembled modular units and install easily with simple tools. With the modular design, unlimited combinations can be created from our standard sizes. Custom sizes also available.
  • Front frames are clear anodized and sealed aluminum for good looks and durability.
  • Extra rigid integrated aluminum frames with double reinforced corners and precision hardware (no welds to crack).
  • Integrated top bracing provides maximum strength and the ability to mount a vice on the countertop
  • Adjustable shelf system allows shelves to be adjusted in 2-1/4″ increments from top to bottom. (choose from Adjustable Shelves or Adjustable Pull-Out-Shelves)
  • One adjustable shelf included with every base cabinet.
  • Manufactured from premium high alloy aluminum with high gloss finish.
  • Doors are double wall construction, with inner-hat-bracing for maximum strength and rigidity. Doors are manufactured using .063″ thick premium aluminum outside and .040″ thick premium aluminum on inner panels. Full length continuous aluminum hinges provide complete support to the door structure.
  • Single door cabinets available with either left-hand or right-hand swing.
  • CAD and CNC assure precision cabinets providing a perfect fit.
  • Highly resistant to mold, mildew, corrosion, discoloration and fingerprints.
  • Will not attract dust and will not cause static shock unlike plastic or resin.
  • Completely hypoallergenic: Moduline Aluminum Garage Storage Cabinets are constructed from materials that minimize the possibility of allergic response.
  • Low profile trigger latches keep doors securely closed and have a textured chrome finish that looks great. Latches are spring loaded providing a built in handle when unlatched. Latch guards protect mechanism on inside of door. (locking latches available)
  • Pass thru sides available
  • Lifetime Warranty
HeightDepthWidthPart NumberDoors
36″18″24″3618241
36″18″30″3618302
36″18″32″3618322
36″18″36″3618362
36″24″16″3624161
36″24″24″3624241
36″24″30″3624302
36″24″32″3624322
36″24″36″3624362
36″30″24″3630241
36″30″30″3630302
36″30″32″3630322
36″30″36″3630362

Single 4" Tall Drawer Featuring QuickDraw® Patented Single Action Latch System

  • Drawer for Moduline Garage Base CabinetsEffortlessly lift anywhere along the handle to release the latch – so easy you can do it with one finger
  • Drawers stay safely closed during transit, even without locks
  • Dual mechanisms at each end of the handle work independently to ensure secure closure while sacrificing NO drawer space
  • Whisper quiet operation

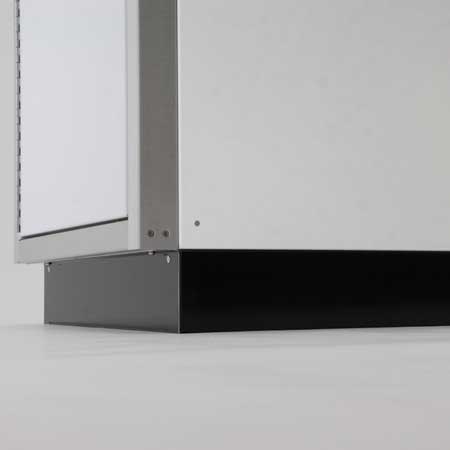

Toe Kick Riser™

toe-kick

  • Provides a neat, clean appearance
  • Adjustable leveling for uneven floors
  • Raises cabinets 2″ or 4″ above the floor
  • Creates a comfortable foot space
  • Keeps under cabinets clean
  • Prevents anything from rolling underneath

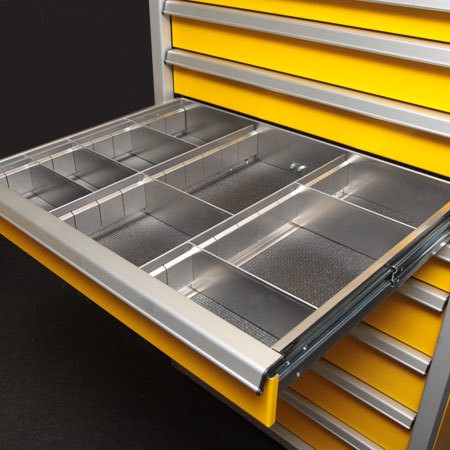

Aluminum Drawer Dividers

Drawer Dividers for Garage Tool Storage Cabinets

  • Keeps parts, tools or hardware separated and organized
  • Fits drawer cabinets, toolboxes and tool carts
  • Each drawer includes 6 separators that can be rearranged for any size parts
  • Additional separators can be ordered for even more customization
  • Made from high-alloy aluminum

Plastic Drawer Bins

  • Drawer Bins for Aluminum Cabinet SystemsPerfect for organizing small parts and hardware
  • Available in setups for small, medium and large parts
  • Rearrange them to suit your needs
  • High impact polystyrene (HIPS)

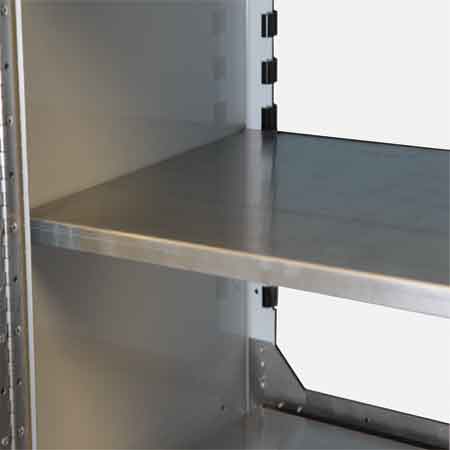

Extra Adjustable Shelves

Adjustable Shelves Aluminum Cabinet Accessories

  • Easy to install and adjust height in 2-1/4” increments
  • CAD and CNC precision ensure that shelves fit perfectly
  • Made from high-alloy aluminum
  • One adjustable shelf included with every base cabinet.

Adjustable Pull-Out Shelves

  • pull-out-shelfEasy to install and adjust height in 2-1/4” increments
  • Provides easy access for hard-to-reach items
  • Great for storing large, bulky items
  • Shelves slide out on full-extension smooth ball bearing slides
  • CAD and CNC precision ensure that shelves fit perfectly
  • Made from high-alloy aluminum

Cabinet bottom

  • Cabinet Bottom for Garage Storage SystemsOnly for use with Toe Kick Riser™ option

Optional cabinet backs not required but available

Locking Latch option available

Countertops available in stainless steel, butcher block or aluminum.

Stainless Steel Countertops for Aluminum Cabinets

  • Tops can be seamless up to 12 feet.
  • Built in sinks available from Moduline or choose your own
  • Optional Power Grid provides a perfect and convenient way to incorporate electrical, air and USB into your cabinet system.
  • Oil and chemical resistant Workbench Mat is perfect for protecting your investment

Built in sinks available from Moduline or choose your own

Moduline Extreme Liner™

Drawer Liner for Aluminum Cabinet Systems

  • Non-slip, PVC-coated polyester holds tools in place
  • Solid material (not mesh) black in color
  • 20.8″ wide x 1/8″ thick
  • The 20.8″ width fits in a 24″ deep Moduline Drawer
  • Protects tools from scratching and marring
  • Works on any drawers or shelves
  • Easy to trim for a perfect fit
  • Works great on shelves to cushion fragile items

Workbench Mat

Bench Mat for Countertop of Base Cabinet Systems

  • Perfect way to protect your countertop, tools and parts
  • Shock absorbent
  • Resists oil, grease and many common chemicals
  • Diamond tread pattern prevents slippage
  • Cuts easily to fit any size workbench (up to 36” deep)

QuikDraw® Single Action Latch System

QuikDrawPAT



QuikDraw® Single Action Latch System

QuikDrawPAT



Adjustable Toe Kick

garage base toe kickWhen Moduline first started to produce cabinets we wanted to be different and better than other cabinets on the market. One feature we came up with was to use our Adjustable Toe Kick feature as opposed to legs on the bases of our cabinets. The reasons are actually quite simple.

First, we actually work on our cabinets so we have real experiences to apply to the design. We didn't want tools or parts falling off the countertop or work bench and then bouncing or rolling under the bench. That would mean we would have to get down and reach under the bench to grab what had fallen. This is very inefficient and if you think about it, there's probably a lot of dirt and grime under an open bench right? Who wants to get down and reach into that?

That brings up another good reason for the Adjustable Toe Kick. Cleanliness is very important to a home or shop. Having a Toe Kick keeps the underneath of your bench clean. There's no trying to get a broom under there to sweep or getting down on your hands and knees with a rag to wipe up anything that spilled. We built functionality into our Adjustable Toe Kick. They are recessed 2" from the front of the cabinet to make floor cleaning easy and provide comfortable foot space when standing in front of cabinets. 2" or 4" heights are available depending on the final desired height of your work surface. The Moduline Adjustable Toe Kick also allows for easy adjustment between riser and base cabinet or drawer cabinets to compensate for uneven floors. Our Adjustable Toe Kick is installed on the floor for a clean look with no gap between cabinet and floor. Height adjustment is then made between the riser and cabinet, where it can not be seen creating a neat and clean looking cabinet installation.

Think about your kitchen. Why aren't your kitchen cabinets on legs? Having the Moduline Adjustable Toe feature keeps things cleaner, safer, more efficient and just plain better looking. It's the small things that make a huge difference, and that is why Moduline cabinets are the perfect choice for your tool and storage cabinet needs.
